Features :
• Adequate for cable soldering.

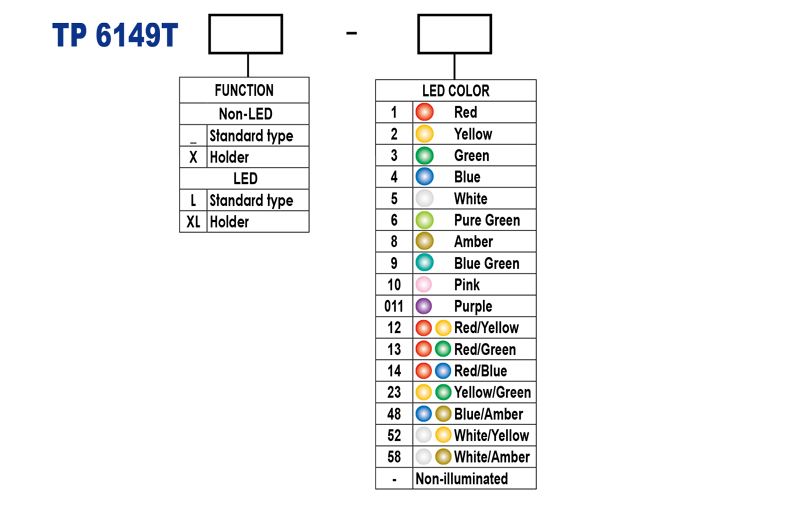

• Several LED colors options.
• Compatible holder is available.
Applications :
Operating switches in all types of electronic equipment such as audio apparatus, office equipment, communications apparatus, TV sets, VCRs,etc.
| Rating | 50mA 12VDC |
|---|---|
| Insulation Resistance | 100MΩ Min (at 500 VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 30mΩ Max. (Initial) |
| Electrically Life | 300,000 Cycles Min |
| Ambient Temperature | -25°C~ +70°C |
| Operating Force | 160 ± 50gf |
| Travel | 0.25 ± 0.1mm |
| Color | VR | IF | Recommended Operating Current |
VF | |
|---|---|---|---|---|---|
| Nor | Max | ||||
| Red | DC 5V | 20mA | 20mA | 1.7V | 2.4V |
| Green | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Yellow | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Blue | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
| White | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
For the specification about the other LEDs, please contact with sales department
