Features :
• Miniature structure with long traveling.

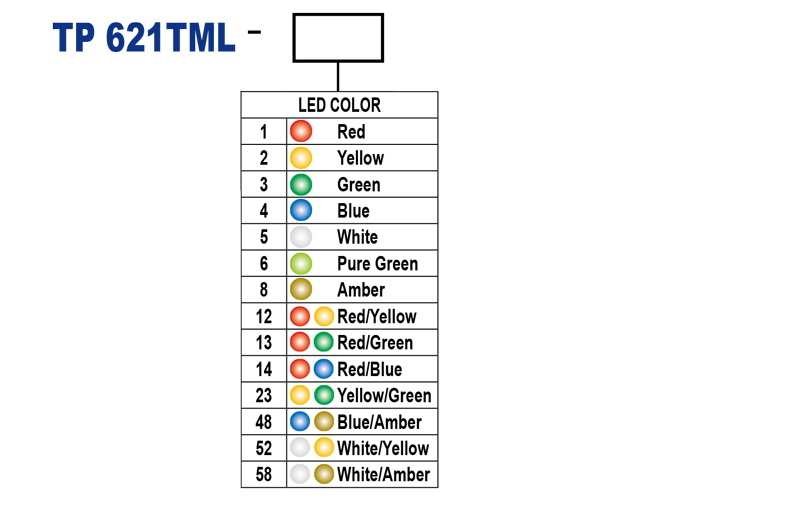

• Several LED colors options.
• Customized cap and symbols are available.
• Combination of switch linked with LED avoid the LED failure during high-temperature processing.
Applications :
Operating switches in all types of electronic equipment such as audio apparatus, office equipment , communications apparatus, TV sets, VCRs, etc.
| Rating | 50mA 12VDC |
|---|---|
| Insulation Resistance | 1GΩ Min (at 250 VDC) |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 100mΩ Max. (Initial) |
| Electrically Life | 100,000 Cycles Min |
| Ambient Temperature | -40℃~ +125℃ |
| Operating Force | 400 ± 100gf |
| Total Travel | 0.8 ± 0.1mm |
| Color | VR | IF | Recommended Operating Current |
VF | |
|---|---|---|---|---|---|
| Nor | Max | ||||
| Red | DC 5V | 20mA | 20mA | 1.7V | 2.4V |
| Green | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Yellow | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Blue | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
| White | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
For the specification about the other LEDs, please contact with sales department
