Features :
• DIP top actuated.
• Several caps and LED colors options.
• Several cap legends options.
• Long operating life.
Applications :
Suitable for use in digital circuits of any electronic devices as reset switches, etc.

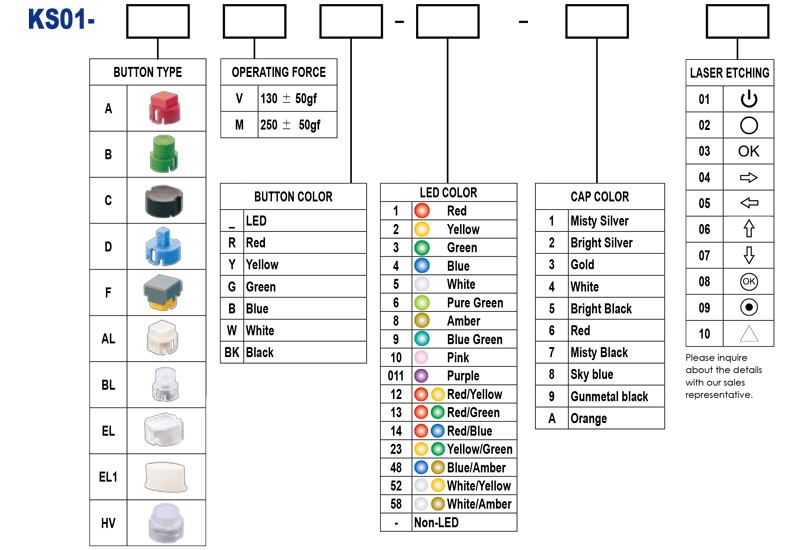

KS01 系列
Specifications
| Rating | 10mA 35VDC |
|---|---|
| Insulation Resistance | 100MΩ Min(at 250 VDC |
| Dielectric Strength | AC 250V (50/60 Hz for 1 minute) |
| Contact Resistance | 30mΩ Max. (Initial) |
| Electrically Life | V:130gf 100,000 Cycles Min |
| M:250gf 30,000 Cycles Min | |
| Ambient Temperature | -20°C~ +60°C |
| Operating Force | V: 130 ± 50gf |
| M: 250 ± 50gf | |
| Travel | 1.0 ± 0.2 mm |
LED Specifications
| Color | VR | IF | Recommended Operating Current |
VF | |
|---|---|---|---|---|---|
| Nor | Max | ||||
| Red | DC 5V | 20mA | 20mA | 1.7V | 2.4V |
| Green | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Yellow | DC 5V | 20mA | 20mA | 1.9V | 2.4V |
| Blue | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
| White | DC 5V | 20mA | 20mA | 3.0V | 3.6V |
For the specification about the other LEDs, please contact with sales department
