Industry standard octal-type termination for quick installation.
Contact rating up to 10A/250VAC.
MK 系列
| MK 2 N ─ D T 1 2 3 4 5 6 |
||
|---|---|---|
| 1. Type | 2 | 3 |
| 2P (2PDT) 3P (3PDT) 3P5 (3PDT) |
NIL: Without LED N: With LED |
|
| 4. Coil Nominal Voltage type | 5. Coil Nominal Voltage Type | 6. Test button |
| D : DC A : AC |
NIL : Without test button T : W ith test button |
|
| COIL DATA(at 25 ) | |||
|---|---|---|---|
| AC 2.8VA | |||
| Coil Nominal Voltage (50/60Hz) | Resistance Tol.±10% (Ohms) | Maximum Pick Up Voltage (V) | Minimum Drop Out Voltage (V) |
| 12 | 18 | 9.6 | 3.6 |
| 24 | 72 | 19.2 | 7.2 |
| 48 | 288 | 38.4 | 14.4 |
| 110 | 1,512 | 88.0 | 33.0 |
| 220 | 6,050 | 176.0 | 66.0 |
| 240 | 7,200 | 192.0 | 72.0 |
| DC 1.6W | ||||
|---|---|---|---|---|
| Coil Nominal Voltage (VDC) | Resistance Tol.±10% (Ohms) | Nominal Current (mA) | Maximum Pick Up Voltage (V) | Minimum Drop Out Voltage (V) |
| 6 | 22.5 | 266 | 4.8 | 0.6 |
| 12 | 90 | 133 | 9.6 | 1.2 |
| 24 | 360 | 66 | 19.2 | 2.4 |
| 48 | 1,440 | 33 | 38.4 | 4.8 |
| 120 | 9,000 | 13 | 96.0 | 12.0 |
| CONTACT RATING | ||
|---|---|---|
| MK2P (2PDT) | AC 250V/30VDC | 10A |
| MK3P(5)(3PDT) | AC 250V/30VDC | 10A |

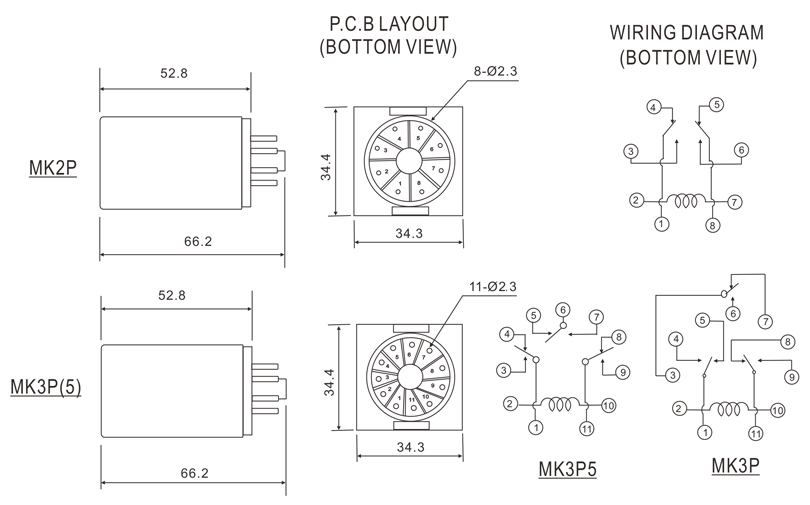

DIMENSIONS(±0.2mm)
| Insulation Resistance | 500 MΩ Min. (DC 500V) |
|---|---|
| Dielectric Strength | 1,000 VAC, 50/60Hz between contact. 1,500 VAC, 50/60Hz between all elements. |
| Contact Material | Ag Alloy. |
| Contact Resistance | 50 milliohms max. ( initial value ) |
| Shock Resistance | Malfunction: 10G(11ms) ; Destructive: 100G(6ms) |
| Vibration Resistance | Malfunction: 10 to 55 Hz. at Double Amplitude of 1.5 mm Destructive: 10 to 55 Hz. at Double Amplitude of 1.5 mm |
| Operation Time | 15 ms max. |
| Release Time | 10 ms max. |
| Temperature Range | - 40°C ~ + 55°C |
| Expected Life | With operation rate 30/min. Mechanical - 10,000,000 operations min. Electrical - 100,000 operations min. at rated load. |
| Weight | MK2P Type : 70 grams, MK3P5 Type : 80 grams |
