High performance power relay.

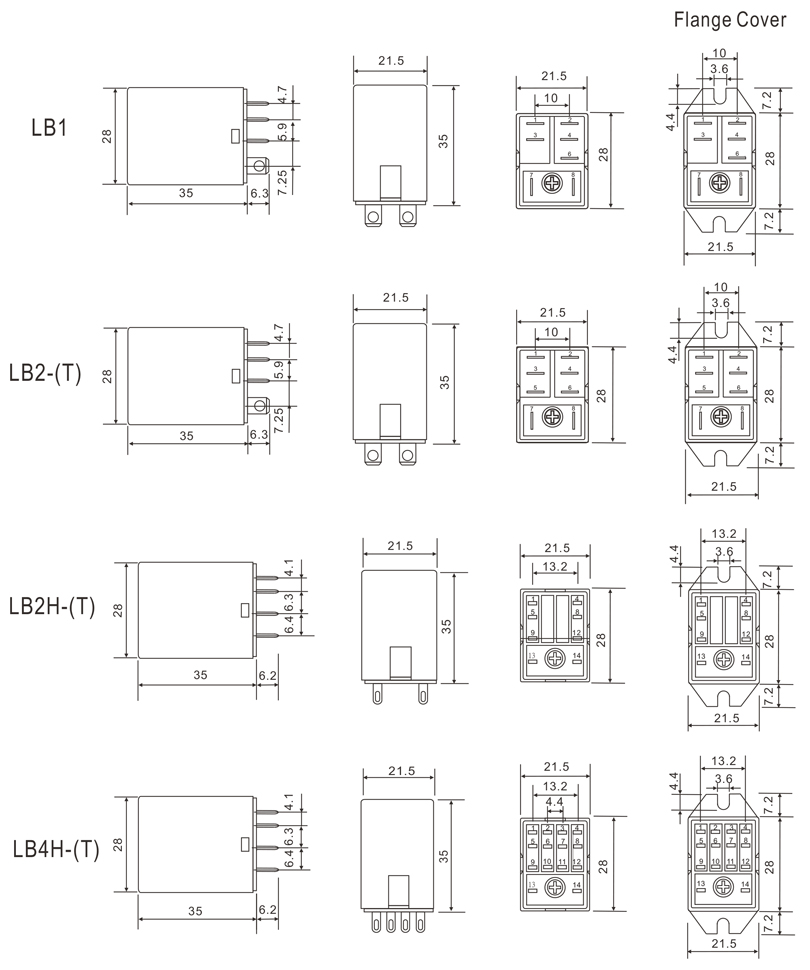

PCB terminal and solder lug terminal and flanged case are available.
LED version is available.
UL, CUL, TUV, and CE approved.
Using at control equipment, vending machines, cooking appliances, office machine, domestic appliances, etc.

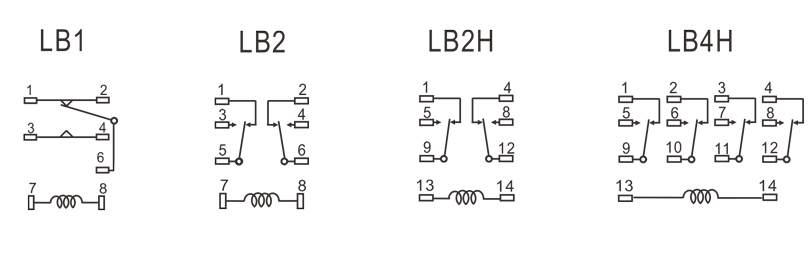

| LB1 N ─ 12 D F S 1 2 3 4 5 6 |
||
|---|---|---|
| 1. Type | 2. LED | 3. Coil Nominal Voltage |
| LB1(1PDT) : 15A LB2(2PDT) : 12A LB2H(2PDT) : 10A LB4H(4PDT) : 5A |
Nil : Without LED N : With LED |
|
| 4. Coil Nominal Voltage Type | 5. Cover Type | 6. Terminal Type |
| D : DC A : AC |
Nil : Standard Type F : Flange Cover T : Test button |

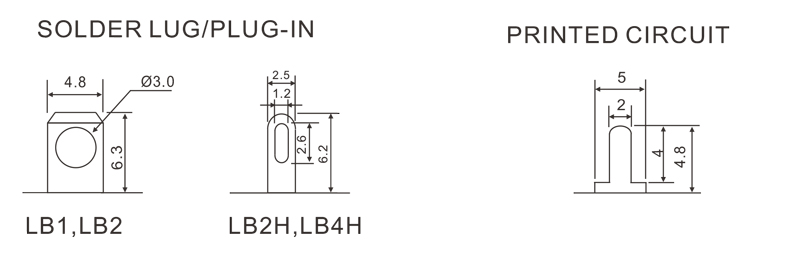

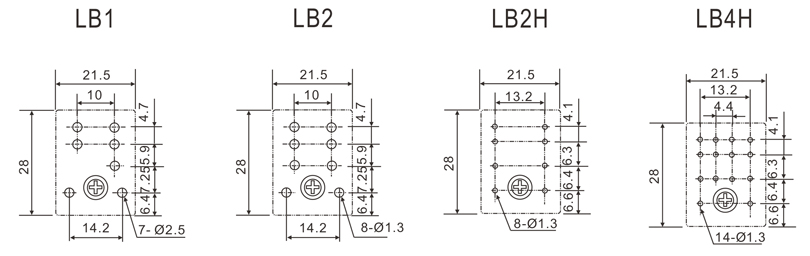

S : Solder Lug / Plug-In Terminal P : PCB Terminal |
| COIL DATA(at 25 ) | |||
|---|---|---|---|
| AC 1.2VA | |||
| Coil Nominal Voltage (50/60Hz) | Resistance Tol.±10% (Ohms) | Maximum Pick Up Voltage (V) | Minimum Drop Out Voltage (V) |
| 6 | 10 | 4.8 | 1.8 |
| 12 | 45 | 9.6 | 3.6 |
| 24 | 160 | 19.2 | 7.2 |
| 48 | 670 | 38.4 | 14.4 |
| 100/110 | 3,900 | 88.0 | 33.0 |
| 220/240 | 16,000 | 176.0 | 66.0 |
| DC 0.9-1.1W | ||||
|---|---|---|---|---|
| Coil Nominal Voltage (VDC) | Resistance Tol.±10% (Ohms) | Nominal Current (mA) | Maximum Pick Up Voltage (V) | Minimum Drop Out Voltage (V) |
| 6 | 40 | 150 | 4.5 | 0.6 |
| 12 | 160 | 75 | 9.0 | 1.2 |
| 24 | 650 | 37 | 18.0 | 2.4 |
| 48 | 2,600 | 19 | 36.0 | 4.8 |
| 100/110 | 11,000 | 9 | 82.5 | 11.0 |
| CONTACT RATING | ||||
|---|---|---|---|---|
| LB1 TYPE | Resistive (Cos.θ= 1) | AC 240V / DC 30V | 15A | UL |
| AC 240V / DC 24V | 15A | TUV | ||
| Inductive (Cos.θ= 0.4) | AC 240V | 8A | TUV | |
| LB2 TYPE | Resistive (Cos.θ= 1) | AC 240V / DC 30V | 12A | UL |
| AC 240V / DC 24V | 10A | TUV | ||
| Inductive (Cos.θ= 0.4) | AC 240V | 5A | TUV | |
| LB2H TYPE | Resistive (Cos.θ= 1) | AC 240V / DC 30V | 10A | UL |
| AC 240V / DC 24V | 10A | TUV | ||
| Inductive (Cos.θ= 0.4) | AC 240V | 5A | TUV | |
| LB4H TYPE | Resistive (Cos.θ= 1) | AC 240V / DC 30V | 5A | UL |
| AC 240V / DC 24V | 5A | TUV | ||
| Inductive (Cos.θ= 0.4) | AC 240V | 3A | TUV | |
| Insulation Resistance | 1,500 MW Min. (DC 500V) |
|---|---|
| Dielectric Strength | 750 VAC, 50/60Hz between contact. 1,500 VAC, 50/60Hz between all elements. |
| Contact Material | Ag Alloy. |
| Contact Resistance | 100 milliohms max. ( initial value ) |
| Shock Resistance | Malfunction: 10G(11ms) ; Destructive: 100G(6ms) |
| Vibration Resistance | Malfunction: 10 to 55 Hz. at Double Amplitude of 1.5 mm Destructive: 10 to 55 Hz. at Double Amplitude of 1.5 mm |
| Operation Time | 15 ms max. |
| Release Time | 15 ms max. |
| Temperature Range | - 40°C ~ + 55°C |
| Expected Life | With operation rate 30/min. Mechanical - 10,000,000 operations min. Electrical - 100,000 operations min. at rated load. |
| Weight | 37 grams |
