材料 : 尼龍 PA(UL File No:E240925)
密封件 : 丁腈橡膠 (NBR)、耐候橡膠 (EPDM)
防護等級 : IP68

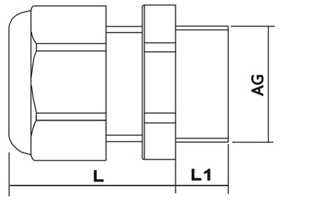

電纜固定頭 M 型
| Thread |  mm |
L1 mm |
L mm |
 mm |
AG mm |
|---|---|---|---|---|---|
| M12X1.5 | 3-6 | 8 | 22 | 16 | 12 |
| M12X1.5 | 2-5 | 8 | 22 | 16 | 12 |
| M16X1.5 | 5-10 | 8 | 26 | 19 | 16 |
| M16X1.5 | 3-7 | 8 | 26 | 19 | 16 |
| M20SX1.5 | 6-12 | 9 | 28 | 24 | 18 |
| M20SX1.5 | 5-9 | 9 | 28 | 24 | 18 |
| M20X1.5 | 7-12 | 10 | 30 | 27 | 20 |
| M20X1.5 | 10-14 | 10 | 30 | 27 | 20 |
| M25X1.5 | 13-18 | 10 | 35 | 33 | 25 |
| M25X1.5 | 9-16 | 10 | 35 | 33 | 25 |
| M32X1.5 | 18-25 | 12 | 40 | 41/42 | 32 |
| M32X1.5 | 13-20 | 12 | 40 | 41/42 | 32 |
| M40X1.5 | 22-32 | 14 | 48 | 52/53 | 40 |
| M40X1.5 | 20-26 | 14 | 48 | 52/53 | 40 |
| M50X1.5 | 32-38 | 14 | 49 | 60/61 | 50 |
| M50X1.5 | 25-31 | 14 | 49 | 60/61 | 50 |
| M63X1.5 | 37-44 | 14 | 50 | 67 | 63 |
| M63X1.5 | 29-35 | 14 | 50 | 67 | 63 |
