Zero voltage turn-on,zero current turn-off.
Input LED indicator.
Output snubber circuit protection.
TTL and CMOS compatible.
High dv/dt and high blocking voltage.
RSR1 系列 固態繼電器
| RSR1 N D ─ A 240 25 1 2 3 4 5 6 |
||
|---|---|---|
| 1. Series Name | 2. Type Name | 3. |
| N:With LED lndicate | D: DC lnPut Control A: AC ln Put Control |
|
| 4. Out Put Nominal Voltage Type | 5. Out Put Nominal Voltage | 6. Load Current |
| A: AC D: DC |
240: 240V 480: 480V |
10: 10Amps. 25: 25Amps. 40: 40Amps. 50: 50Amps. |
| 型號 | DC-AC | DC-DC | AC-AC |
|---|---|---|---|
| 外型尺寸 ( 毫米 ) | 57.4L×44.8W×28Η | 57.4L×44.8W×28Η | 57.4L×44.8W×28Η |
| 負載電壓 ( V ) | 240V, 480V | 24-480VDC | 240V, 480V |
| 負載電流 ( A ) | 10, 25, 40, 50 | 10, 25, 40, 50 | 10, 25, 40, 50 |
| 介質耐壓 ( Vac ) | 2500 VAC | 2000VAC | 2500VAC |
| 絕緣電阻 ( MΩ ) | 1000MΩ/500VDC | 500MΩ/500VDC | 1000MΩ/500VDC |
| 控制電壓 ( Vdc ) | 3~32VDC | 3~32VDC | 70-280VAC |
| 控制電流 ( mA ) | DC3-25mA | DC5-25mA | AC≤12mA |
| 通態壓降 ( v ) | ≤1.5 | ≤2.3V | ≤1.5V |
| 通態漏電流 ( mAac ) | ≤2mA | ≤2mA | ≤2mA |
| 通斷時間 ( ms ) | ≤10ms | ≤10ms | ≤10ms |
| 動作狀態指示 | LED | LED | LED |
| 環境溫度 | -30°C+75°C | -30°C+75°C | -30°C+75°C |
| 安裝型式 | 螺旋固定 | 螺旋固定 | 螺旋固定 |

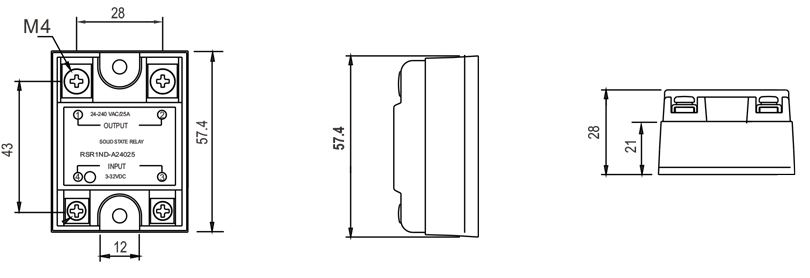

DIMENSIONS (±0.2mm)
